Everyone knows we're the biggest block in the industry. But what they may not know is that we're the industry's most efficient retaining wall system as well. Or that our big block system is the first to be fully engineered both structurally and geotechnically. So no matter what you're looking for - size, speed or strength - Stone Strong Systems can meet your project requirements.

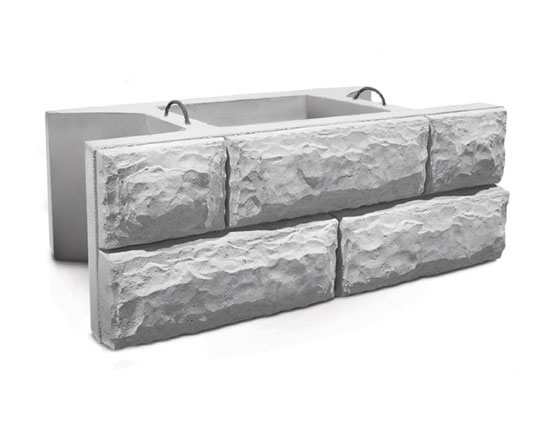

24-44 BLOCK
24-44 BLOCK
Face 8' x 3', Width 44"
The 24 SF Block contributes to the speed of installation. A small crew and a couple pieces of equipment can install 1,200 SF a day.
24-44 BLOCK
24-44 BLOCK
Face 8' x 3', Width 44"

The 24-44 Block contributes to the speed of installation. A small crew and a couple pieces of equipment can install 1,500 SF a day.

Block Weight:  6,000 lbs / 2,720 kg
Concrete Volume: 1.50 CY / 1.15 m3
Aggregate Infill: 1.60 CY / 1.22 m3
RELATED DOCUMENTS

24-44 Battered Face     24-44 Vertical Face

24-44 Mass Extender      24-44 Mass Extender Wall Base

24-44 Wall Base

24-44 Minimum Concave Radius     24-44 Minimum Convex Radius

click to close

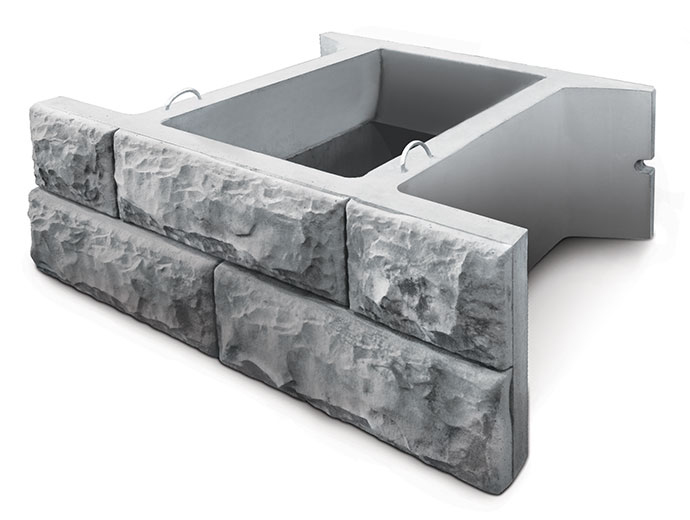

24-86 BLOCK
24-86 BLOCK
Face 8' x 3', Width 86"
Setting the standard for tall gravity walls. At 22.5', it can go vertical with no tie-back.
24-86 BLOCK
24-86 BLOCK
Face 8' x 3', Width 86"
Block Weight:  7,600 lbs / 3,445 kg
Concrete Volume:  1.90 CY  / 1.45 m3
Aggregate Infill: 4.37 CY  / 3.35 m3

24-86 Isometric View

24-86 Wall Base

24SF Minimum Concave Radius

24SF Minimum Convex Radius

24SF Wall Base

click to close
D150 Block Assembly
D150 Block Assembly
Face 8' x 3', Width 86"
Setting the standard for tall gravity walls. Gravity walls can be built in excess of 35 feet!
D150 Block Assembly
D150 Block Assembly
Face 8' x 3', Width 86"
Assembly Weight:  12,650 lbs / 5780 kg
Concrete Volume:  3.26 CY  / 2.50 m3
Aggregate Infill: 7.57 CY  / 5.78 m3

24-86 Isometric View

24-86 Wall Base

D150 Gravity Height Tables

click to close

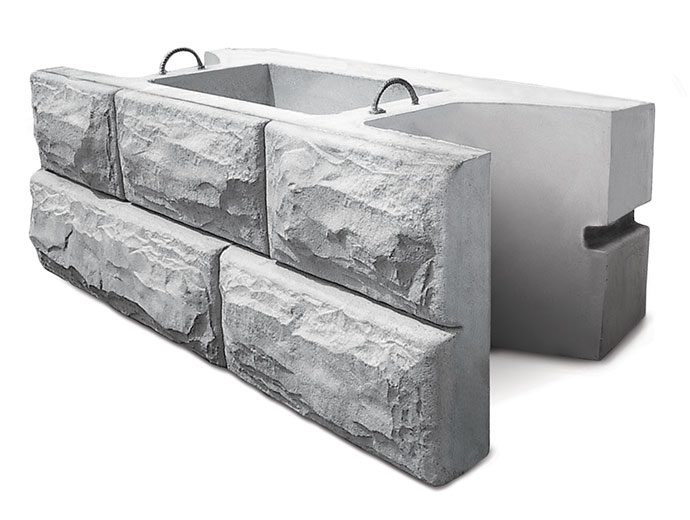

24-44 Mass Extender Block
24-44 Mass Extender Block
Face 8' x 3', Width 56"
The addition of the extender to the 24 SF Block provides for greater gravity wall heights.
24-44 Mass Extender Block
24-44 Mass Extender Block
Face 8' x 3', Width 56"
Block Weight:  10,000 lbs / 4,585 kg
Concrete Volume:  2.50 CY / 1.91 m3
Aggregate Infill: 1.66 CY / 1.28 m3

24-44 Mass Extender

24-44 Mass Extender Wall Base

click to close

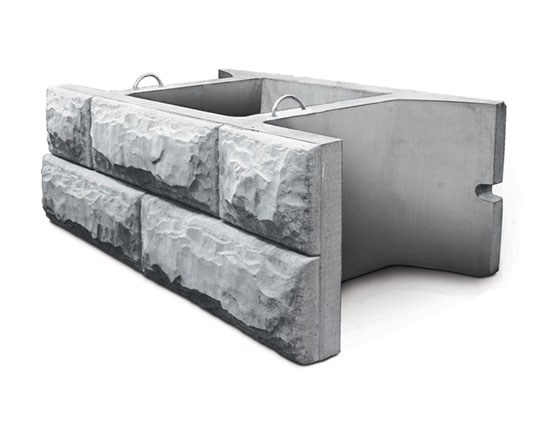

24-62 BLOCK
24-62 BLOCK
Face 8' x 3', Width 62"
Build walls up to 18' tall with no tie-back.
24-62 BLOCK
24-62 BLOCK
Face 8' x 3', Width 62"
Block Weight:  6,800 lbs / 3,080 kg
Concrete Volume: 1.70 CY / 1.30 m3
Aggregate Infill: 2.82 CY / 2.16 m3

Dimensions and Volumes

Related Materials

click to close

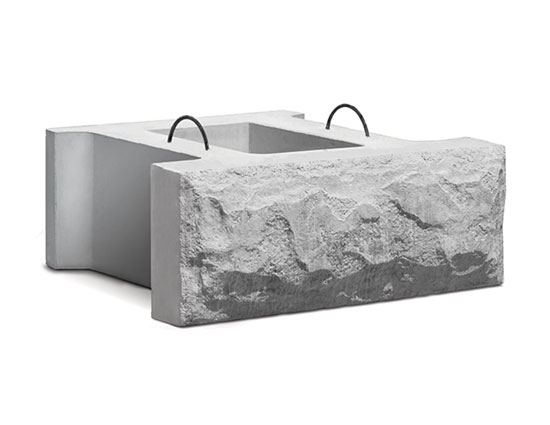

6-44 Block
6-44 Block
Face 4' X 18", Width 44"
The 6 SF block allows for tighter turning radius, wall steps a 18" increments and vertical and horizontal adjustments.
6-44 Block
6-44 Block
Face 4' X 18", Width 44"
Block Weight:  1,500 lbs / 680 kg
Concrete Volume: 0.38 CY / 0.29 m3
Aggregate Infill: 0.41 CY / 0.31 m3

6-44 Block Isometric View

6SF Wall Base

6-44 Minimum Concave Radius

6-44 Minimum Convex Radius

6-44 Wall Base Step

click to close

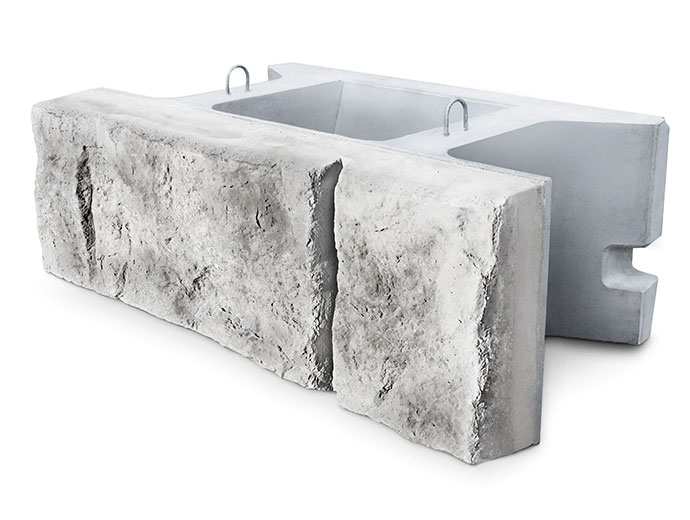

6-28 Block
6-28 Block
FACE 4' X 18", WIDTH 28"
A perfect solution for smaller walls, get up to 60 pieces per truckload. Easy to move around on-site with a skid loader or mini-excavator.
6-28 Block
6-28 Block
FACE 4' X 18", WIDTH 28"
Block Weight:  950 lbs / 430 kg
Concrete Volume: 0.25 CY / 0.19 m3
Aggregate Infill: 0.25 CY / 0.19 m3

6-28SF Isometric View

6-28 Wall Base

6-28 Minimum Convex Radius

6-28 Minimum Concave Radius

click to close

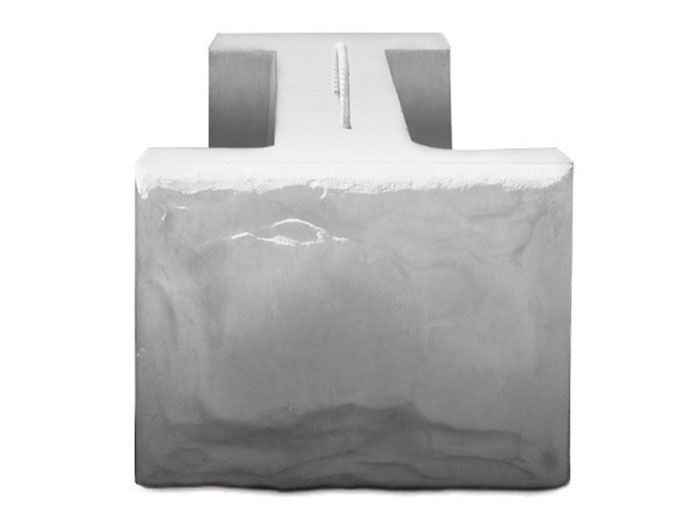

3-44 BLOCK
3-44 BLOCK
FACE 2' X 18", WIDTH 44"
The 3 SF Block allows the wall to stay on running bond.
3-44 BLOCK
3-44 BLOCK
FACE 2' X 18", WIDTH 44"

Block Weight: 690 lbs / 310 kg

Concrete Volume: 0.18 CY / 0.14 m3

Aggregate Infill:  0.16 CY / 0.12 m3

3SF Isometric View

3-28 Isometric View

Wall Base Step

Dimensions and Volumes

click to close

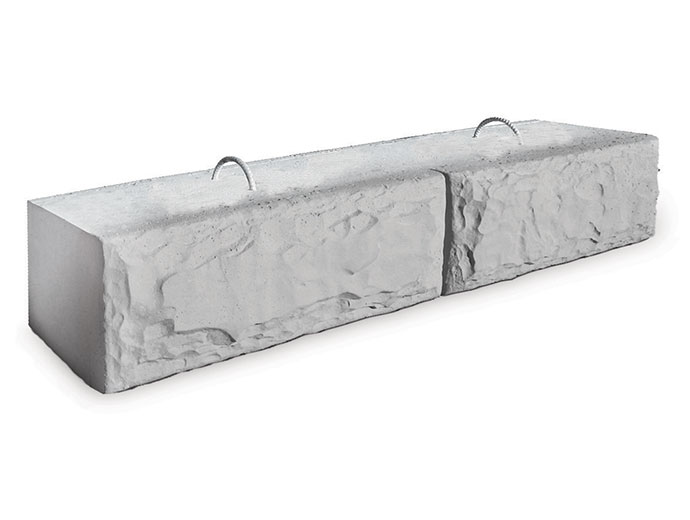

Dual Face Block
Dual Face Block
Face 8' x 18", Width 28"
The Dual Face Block provides for above-grade applications.
Dual Face Block
Dual Face Block
Face 8' x 18", Width 28"

Block Weight: 3,520 lbs / 1,595 kg

Concrete Volume: 0.88 CY / 0.67 m3

Dual Face Configurations Isometric View

Dual Face End Unit

Dual Face Curb with sidewalk

click to close

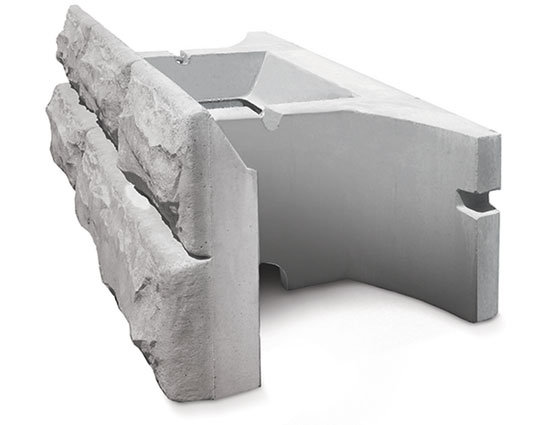

24 SF Top Block
24 SF Top Block
Face 8' x 3', width 44"
The Top Block has an 8" recess at the top of the face to allow for multiple finish options.
24 SF Top Block
24 SF Top Block
Face 8' x 3', width 44"
Block Weight:  5,400 lbs / 2,445 kg
Concrete Volume: 1.35 CY / 1.03 m3
Aggregate Infill: 1.24 CY / 0.94 m3

24SF Vertical Face

24SF Battered Face

Dimensions and Volumes

click to close
6-44 Top Block
6-44 Top Block
Face 18'' x 48'', width 44"
The Top Block has an recess at the top of the face to allow for multiple finish options.
6-44 Top Block
6-44 Top Block
Face 18'' x 48'', width 44"

Block Weight: 1,400 lbs / 635 kg

Concrete Volume: .35 CY / .27 m3

Aggregate Infill: .30 CY / 0.23 m3

Dimensions and Volumes

click to close
6-28 Top Block
6-28 Top Block
Face 18'' x 48'', width 28"
The Top Block has an recess at the top of the face to allow for multiple finish options.
6-28 Top Block
6-28 Top Block
Face 18'' x 48'', width 28"

Block Weight: 840 lbs / 380 kg

Concrete Volume: .21 CY / .16 m3

Aggregate Infill: .16 CY / 0.12 m3

(per face area):  0.07 ton/sf  | 700 kg/ m2

Dimensions and Volumes

click to close

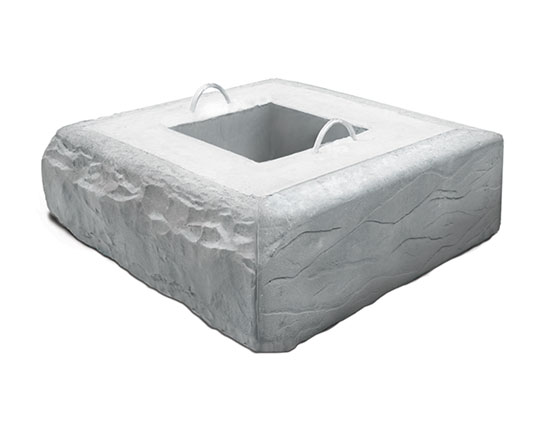

90° Block
90° Block
FACE 4' X 18", WIDTH 4'
The 90° Block provides for inside and outside 90° turns.
90° Block
90° Block
FACE 4' X 18", WIDTH 4'

Block Weight: 2,600 lbs / 1,180 kg

Concrete Volume: 0.65 CY / 0.50 m3

90 Degree Corner Isometric View

Dimensions and Volumes

click to close

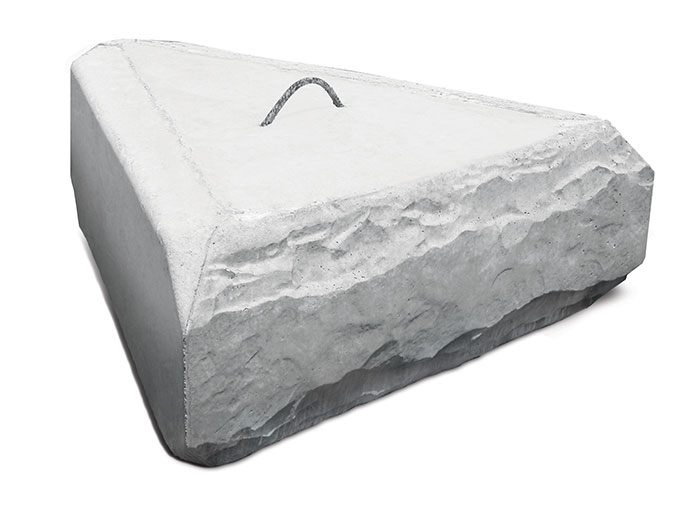

45° Block
45° Block
Face 4' x 18" x 8.25"
The 45° Block provides for inside and outside 45° turns.
45° Block
45° Block
Face 4' x 18" x 8.25"

Block Face: FACE 4' X 18" X 8.25"

Block Weight: 2,040 lbs / 925kg

Concrete Volume: .51 kg / .39 m3

Dimensions and Volumes

click to close

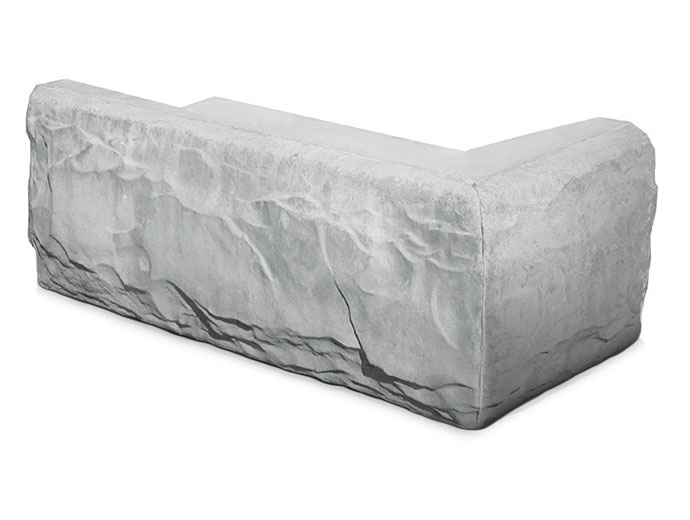

End / Corner Block
End / Corner Block
Face 4' x 18", Width 2'
The End / Corner Block is used for 90° turns and for end finish treatments.
End / Corner Block
End / Corner Block
Face 4' x 18", Width 2'
END UNIT
Block Weight:1,300 lbs / 590 kg
Concrete Volume:0.33 CY / 0.25 m3
CORNER UNIT
Block Weight:1,500 lbs / 680 kg
Concrete Volume:0.38 CY / 0.29 m3

Corner Unit Isometric View

Dimensions and Volumes

click to close
Inside Corner Block
Inside Corner Block
six different variations of block size
Provides inside wall turns
Inside Corner Block
Inside Corner Block
six different variations of block size

Dimensions and Volumes

click to close
Outside Corner Block
Outside Corner Block
six different variations of block size
Provides outside wall turns
Outside Corner Block
Outside Corner Block
six different variations of block size

Dimensions and Volumes

click to close
Cap Block
Cap Block
FACE 7'', WIDTH 32", LENGTH 96''
The Cap Block is used for top of wall finish.
Cap Block
Cap Block
FACE 7'', WIDTH 32", LENGTH 96''

Block Weight: 1,800 lbs / 815 kg

Concrete Volume: 0.46CY / 0.14 m3

Dimensions and Volumes Pg.18

click to close
Roadway

The better way to wall a highway - Stone Strong Systems has undergone rigorous review by the Highway Innovative Technology Evaluation Center (HITEC) to verify conformance with AASHTO standards and specifications. Meets DOT approval.

Commercial

Big-time projects demand big-time blocks - Stone Strong Systems' gravity walls are capable of heights in excess of 20 feet. Meanwhile, with proper engineering and reinforcement, Stone Strong MSE walls have topped nearly 50 feet.

Shoreline

A more resilient system - With a 100 year design life, even in water applications, Stone Strong Systems provides a product that is not only simple but extremely reliable as well.

Residential

Make impossibly hard projects impossibly easy –  Stone Strong Systems’ tapered block edges provide the versatility needed to contour to any landscape, including straight, convex, concave
and circular designs.
